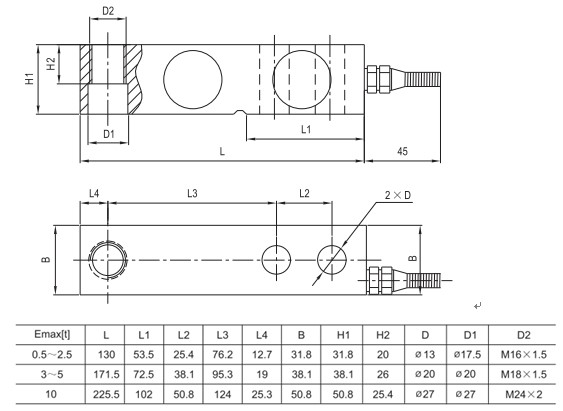

：DH-SQB悬臂梁称重传感器
[] | [] | [] ：称重传感器
主要特点Features
● Single ended shearbeam load cell
● Senior alloy steel
● High accuracy
● High stability
● Unique “blind” loading hole
● Easy to install
● Protected againstcorrosion by nickelplated treatment
● Suitable for floorscales, blending & mixing systems and batching systems, etc.
● 悬臂梁式
● 优质合金钢材质
● 高精度
● 高稳定性
● 独特的承载盲孔设计
● 安装简便、快速
● 表层镀镍防腐处理
● 适用于平台秤、搅拌站和配料秤等
技术参数Specification
|
Rated capacities(Emax)
|
额定载荷
|
0.5、1、2、2.5、3、5、7.5、10t
|
|
Rated Output
|
额定输出
|
3.0 ±0.003 mV/V
|
|
Zero Balance
|
零点平衡
|
±1% of rated output
|
|
Creep after 30 minutes
|
蠕变
|
±0.03% of rated output
|
|
Total error
|
综合误差
|
±0.03% of rated output
|
|
Hysteresis
|
滞后
|
±0.03% of rated output
|
|
Repeatability
|
重复性
|
±0.03% of rated output
|
|
Temp. effect on output
|
灵敏度温漂
|
≤0.002% of applied output/oC
|
|
Temp. effect on zero
|
零点温漂
|
≤0.002% of rated output/oC
|
|
Safe Temp. Range
|
可用温度范围
|
-20oC to + 70oC
|
|
Temp. Compensated
|
温度补偿范围
|
-20oC to + 40oC
|
|
Safe Overload
|
安全载荷
|
150%
|
|
Input Impedance
|
输入阻抗
|
400 ohm ± 10 ohm
|
|
Output Impedance
|
输出阻抗
|
352 ohm ± 3 ohm
|
|
Insulation Resistance
|
绝缘阻抗
|
≥5000 M ohm (50V DC)
|
|
Rated Excitation
|
推荐激励电压
|
10V DC/AC
|
|
Maximum Excitation
|
最大激励电压
|
15V DC/AC
|
|
Cable Length
|
导线长度
|
（0.5~2.5t）3m、（3~5t）4.2m、（10t）5m
|
|
Cable Color Code
|
导线颜色
|
Red(+E) Black(-E) Green(+S) White(-S)
|

|
|
|
|
